MEC Cloud Manufacturing Platform
A lightweight MES platform for SMEs in discrete manufacturing such as machining and injection molding. An edge computing gateway collects data from multi-brand CNC / injection-molding machines / robots, providing equipment ledger, production management, quality management, tool management, energy-consumption management and digital workstations, with private-cloud / public-cloud deployment. Device data collection and go-live are completed within four weeks, enabling paperless management and reducing costs while increasing efficiency for factory owners.
Platform Positioning & Core Capabilities
I. Platform Overview
The positioning and value of the MEC Cloud Manufacturing Platform.
- Around 90% of OT data on the shop floor is not sensed or collected; factories rely on manual reports, so data is delayed and unreliable, and experience cannot be quantified, accumulated or reused.
- The MEC Cloud Manufacturing Platform uses edge computing gateways to network multi-brand CNC / injection-molding machines / robots, building a complete solution for the machining industry covering production, quality, tools, energy consumption and digital workstations.
- The platform supports private-cloud / public-cloud deployment. The lightweight MES completes device data collection and on-premise or cloud deployment within four weeks, and training & deployment within two weeks, letting SMEs achieve production digitalization at low cost.
II. Core Capabilities
The platform's key capabilities for the industrial shop floor.
- Multi-brand device connectivity: the edge computing gateway connects to Ethernet-capable CNC from Siemens, Mitsubishi, FANUC, BROTHER, Haas, SYNTEC, GSK, Mazak, as well as injection-molding machines and ABB robots, collecting status, output, alarms and process parameters.
- Real-time status monitoring: key parameters such as spindle override / load / speed, machine and relative coordinates, run / machining / cycle time, emergency-stop and alarm status, and current tool number; thresholds are set for spindle load and alarms to trigger real-time early warnings.

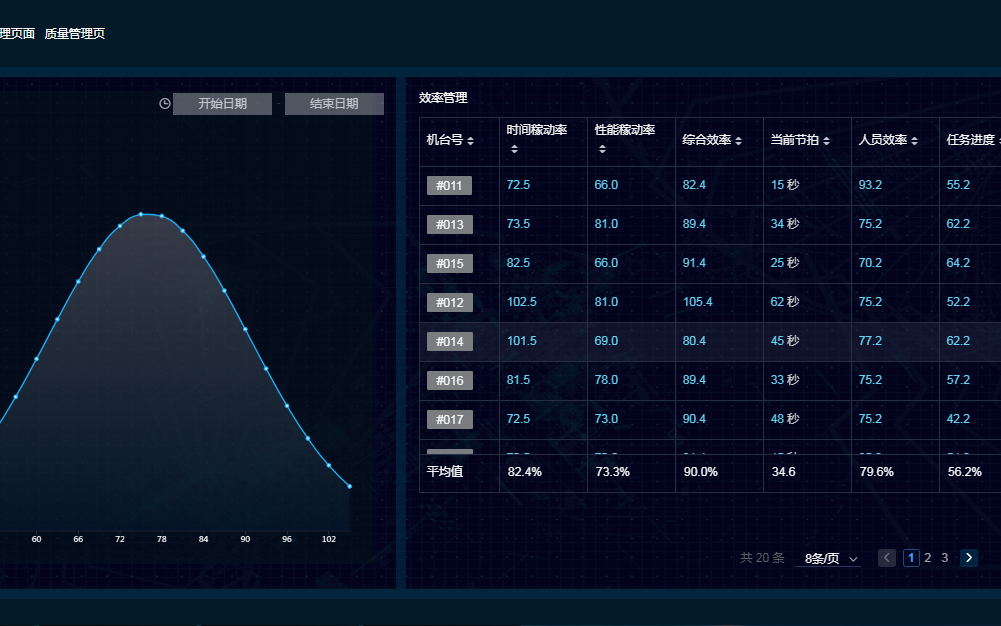

- Production management: scheduling and work-order progress, estimated completion time, utilization and takt-time statistics; the quality-check step manually enters machine output, defect counts and causes, supporting lean production.
- Quality management: pass-rate statistics, defect-cause analysis, and process-parameter traceability, forming a quality closed loop.
- Tool management: tool usage records, lifetime warnings, digital-workstation confirmation at tool change, real-time tool-number retrieval and cutting-time calculation by the edge gateway, with report export.

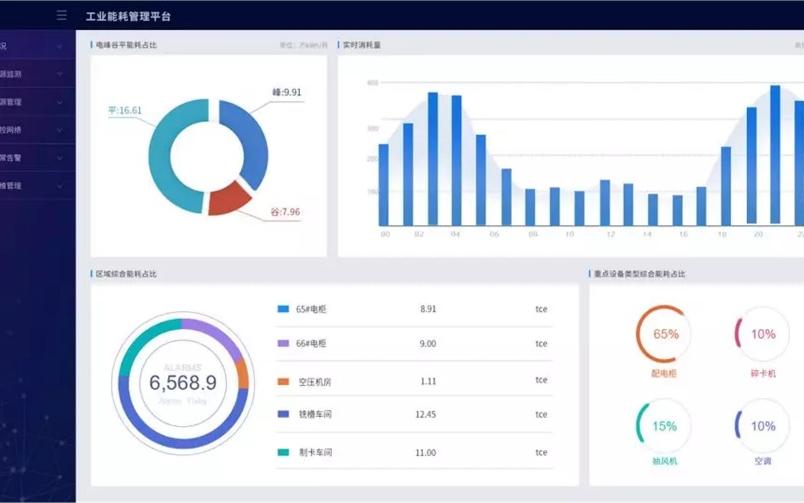

- Energy-consumption management: separate metering of water, electricity and gas; statistics on total / per-unit / per-shift / daily / monthly energy consumption and standby energy use; real-time energy-consumption curve analysis, expected to cut energy costs by 10–20%.
- Digital workstation: a mobile mini-program to view machine machining data in real time; operators report work, confirm tool changes, and enter downtime and defect causes, connecting people — machine — production data.

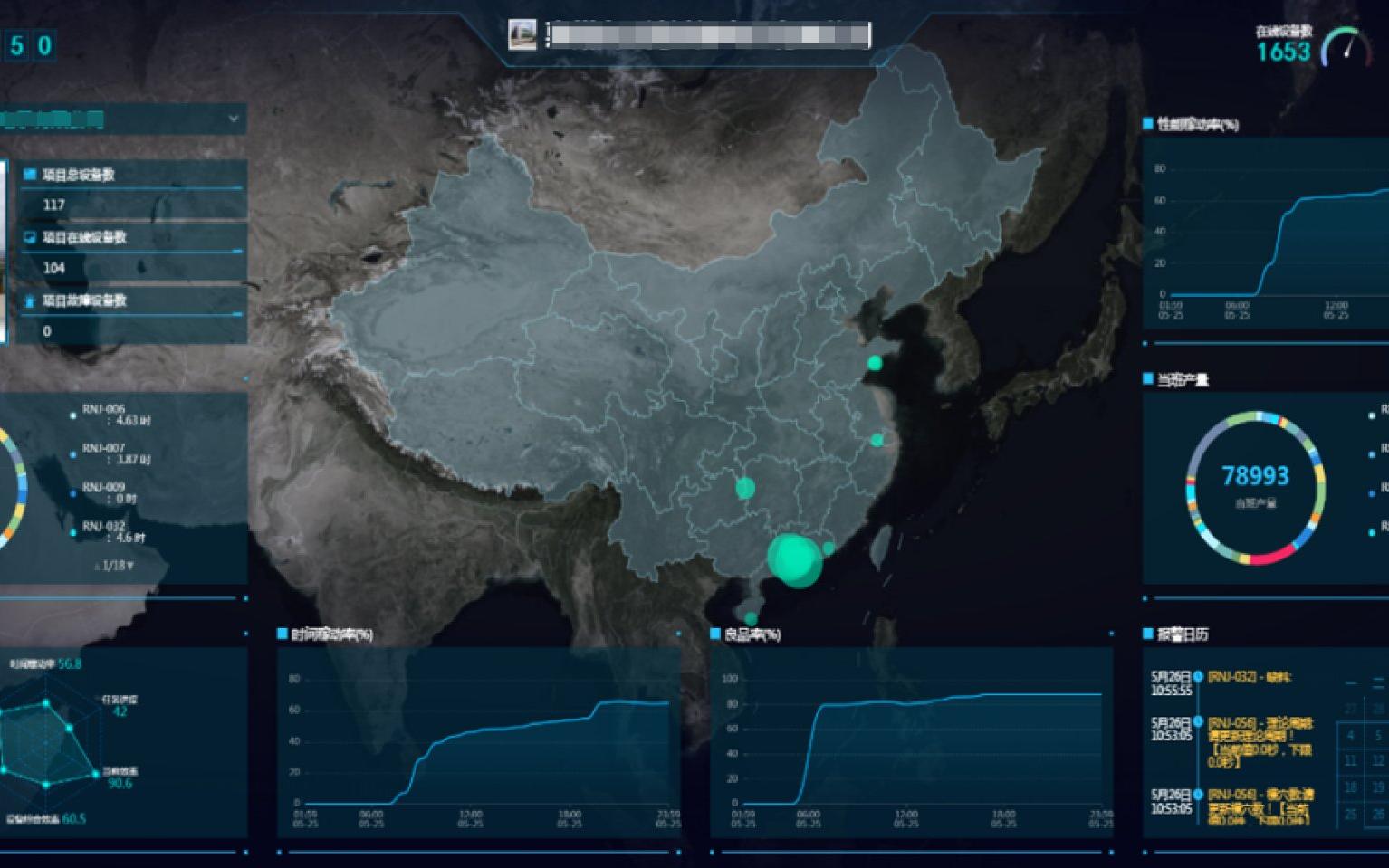

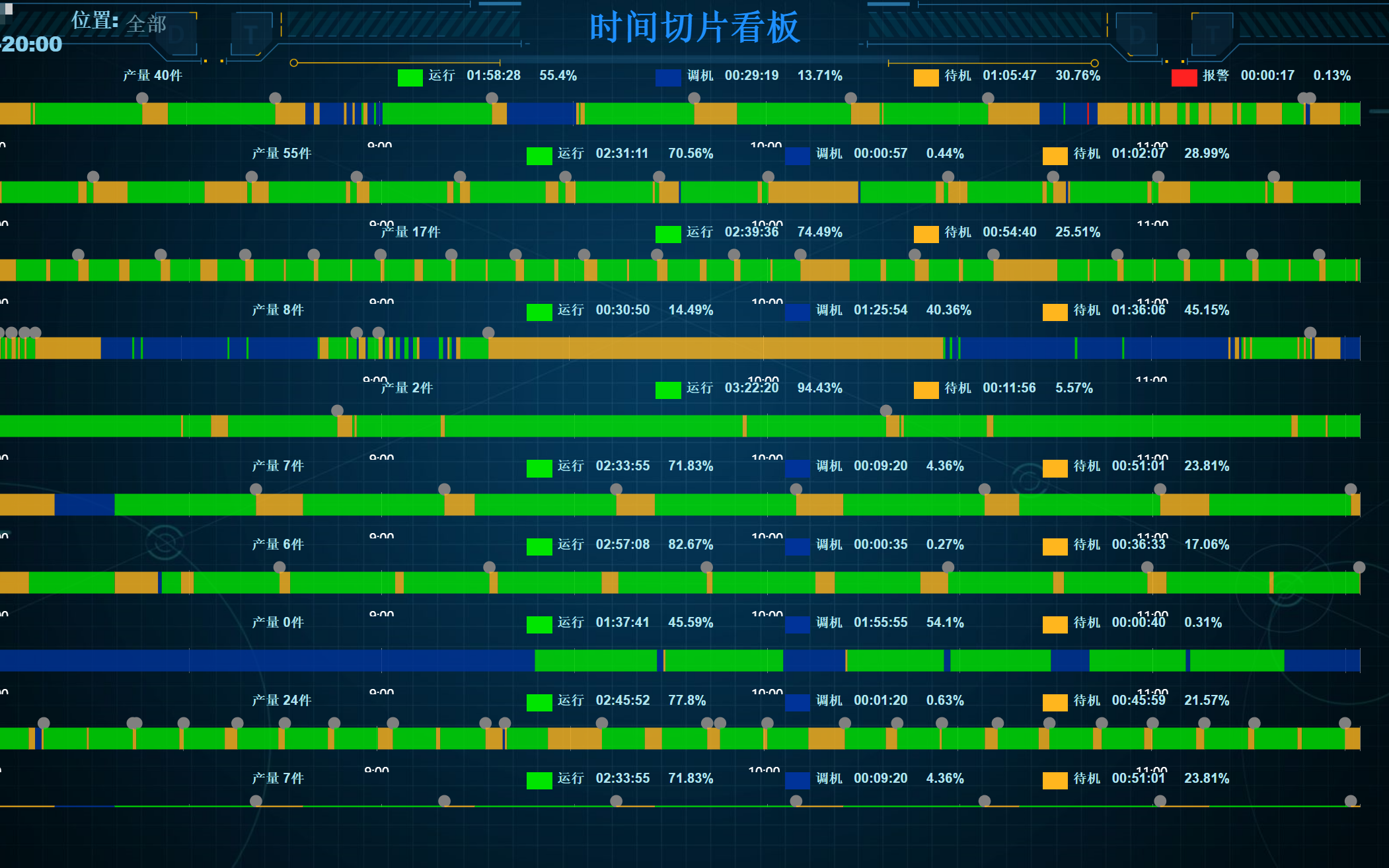

- Large-screen dashboard and time slicing: a full-factory view of equipment operating status (green running / yellow standby / blue tuning / red alarm), giving an at-a-glance view of the line and quickly surfacing excessive standby / tuning time on site.
Supported CNC Brands & Models
Via edge computing gateways such as the AIS-G160, the MEC Cloud Manufacturing Platform connects to the following multi-brand CNC control systems for data acquisition (some models require on-site confirmation of interface conditions):
| Brand | Supported Models / Comms |
|---|---|
| FANUC | All systems with an Ethernet port can communicate; for those without an Ethernet port, on-site confirmation is required on whether an expansion module can be added |
| SYNTEC | System version 10.116.16X or later |
| Mitsubishi | E70, M70, M700, E80, M80, M800 |
| BROTHER | Systems with an Ethernet port |
| SIEMENS | 828D, 828DSL, 840DSL, 808D/808DSL (Ethernet-capable) |
| Haas | Full Ethernet series / full serial-port series |
| KND | Systems with an Ethernet port |
| GSK | All Ethernet-capable systems; 988 series, 25imc, etc. |
| Other Ethernet-capable brands | HNC, Mazak, HEIDENHAIN, Huazhong CNC, etc. can also be connected via the edge gateway |
Supported Injection-Molding Machine Brands & Models
Via edge computing gateways such as the AIS-G160, the MEC Cloud Manufacturing Platform connects to the following multi-brand injection-molding-machine controllers for data acquisition (injection-molding machines typically connect via Modbus TCP / RTU, OPC UA or the manufacturer's proprietary protocol; some models require on-site confirmation of interface conditions):
| Brand | Supported Models / Comms |
|---|---|
| Techmation | Mainstream injection-molding-machine controllers; Ethernet / serial port can communicate |
| Chen Hsong | JieBang series and other Ethernet-capable systems |
| Keqiang | Ethernet-capable systems, supporting process-parameter acquisition |
| Haitian | MA series, two-platen series and other Ethernet-capable controllers |
| Yizumi | Ethernet-capable controllers, supporting status and process acquisition |
| Borch | Ethernet-capable systems, supporting output and alarm acquisition |
| Jieming | Ethernet-capable systems, supporting process-parameter acquisition |
| Other Ethernet-capable brands | L.K., Donghua, Fengtie, Tederic, etc. can also be connected via the edge gateway |
III. Core Function Showcase
From the large-screen dashboard to the workstation mini-program — MEC covers visualization and fine-grained management of plant-wide operations.
IV. Technical Architecture
A four-layer architecture from edge sensing to upper-layer applications.
- Edge access layer: smart edge gateways (such as AIS-G160) connect via Ethernet to multi-brand CNC / injection-molding machines / robots, collecting status, output, process and tool data
- Data aggregation layer: DVS unified modeling fuses "screen layer + protocol layer" data and, after cleaning, feeds it into the MEC cloud
- Application layer: MEC provides production management, quality management, tool management, energy-consumption management, digital workstations and statistical analysis
- Presentation layer: monitoring-center large screen, electronic dashboards and mobile digital workstations, supporting lean production and decision optimization
V. Collaboration with Industrial Gateways
Data and capability collaboration between the platform and APM-G220 / AIS-T100 / AIS-G160.
- With AIS-G160: the edge computing gateway connects to multi-brand CNC / PLC / robots, sends protocol-collected data up to MEC, and abstracts away underlying differences.
- With DVS: MEC business data is unified-modeled and visualized by DVS, forming a "collection — cleaning — early-warning — analysis" closed loop.
- With APM-G220 / AIS-T100: for legacy protocol-less devices, G220 video takeover + T100 OCR fallback collection of on-screen parameters brings them into unified MEC management.
VI. Applicable Scenarios
How the platform is deployed in typical industry scenarios.
- Machining-factory lightweight MES: FANUC / Mitsubishi protocol integration, equipment / tool / process-parameter management, reducing cost and increasing efficiency
- Injection-molding-factory lightweight MES: injection-molding-machine protocol integration, mold / process / external-data acquisition, large-screen visual output
- Metal-processing-factory information visualization: ABB robots + PLC + HMI, the DVS data-acquisition platform, and paperless reports
- Machining / CNC: unified dashboard for multi-brand machine-tool status, output, alarms and tool data
- High-mix low-volume: digital-workstation work reporting + time slicing to quickly spot excessive standby / tuning time
VII. Value & Quantified Metrics
The measurable benefits delivered by the platform.
VIII. Deployment Boundaries & Compliance
Compliance & Applicable Boundaries
The MEC Cloud Manufacturing Platform supports private-cloud / public-cloud deployment; production, process and work-report data is retained privately in the customer's intranet / private network, satisfying compliance for machining, injection-molding and metal-processing manufacturers. Sensitive industries (semiconductor, military, finance, classified) must deploy on a private / intranet network, and 4G must not connect to the public cloud. The platform handles production management and visualization and does not replace the safety-interlock logic of device control systems.
IX. FAQ
Frequently asked questions about the MEC Cloud Manufacturing Platform.
Which CNC / controllers are supported?
Siemens (802D/808D/828D/840D, etc.), Mitsubishi (M70/M80, etc.), FANUC (0i/30i, etc.), BROTHER, Haas, SYNTEC, GSK, Mazak, plus Ethernet-capable brands such as KND / HEIDENHAIN / Huazhong CNC, can all be connected via an edge computing gateway.
Which injection-molding-machine brands are supported?
Mainstream injection-molding-machine controllers from Techmation, Chen Hsong (JieBang series), Keqiang, Haitian (MA / two-platen series), Yizumi, Borch and Jieming can all connect via the AIS-G160 edge gateway through Modbus TCP / RTU, OPC UA or the manufacturer's proprietary protocol, collecting process and status data such as clamping force, injection speed, barrel temperature, cycle time, output and alarms; Ethernet-capable brands such as L.K., Donghua, Fengtie and Tederic can also connect.
Traditional MES adoption is costly — how is MEC different?
MEC is a lightweight MES that completes device data collection and on-premise / cloud deployment within four weeks, and training & deployment within two weeks, sharply lowering adoption cost and the barrier to entry.
Can legacy devices without an Ethernet port be connected?
Yes. The APM-G220 video takeover + AIS-T100 OCR collects on-screen parameters as a fallback for protocol collection, bringing them into unified MEC management.
Will data leave the enterprise?
By default it is deployed privately; production / process / work-report data stays on-premise. Remote links go through the private / intranet network, meeting compliance.
